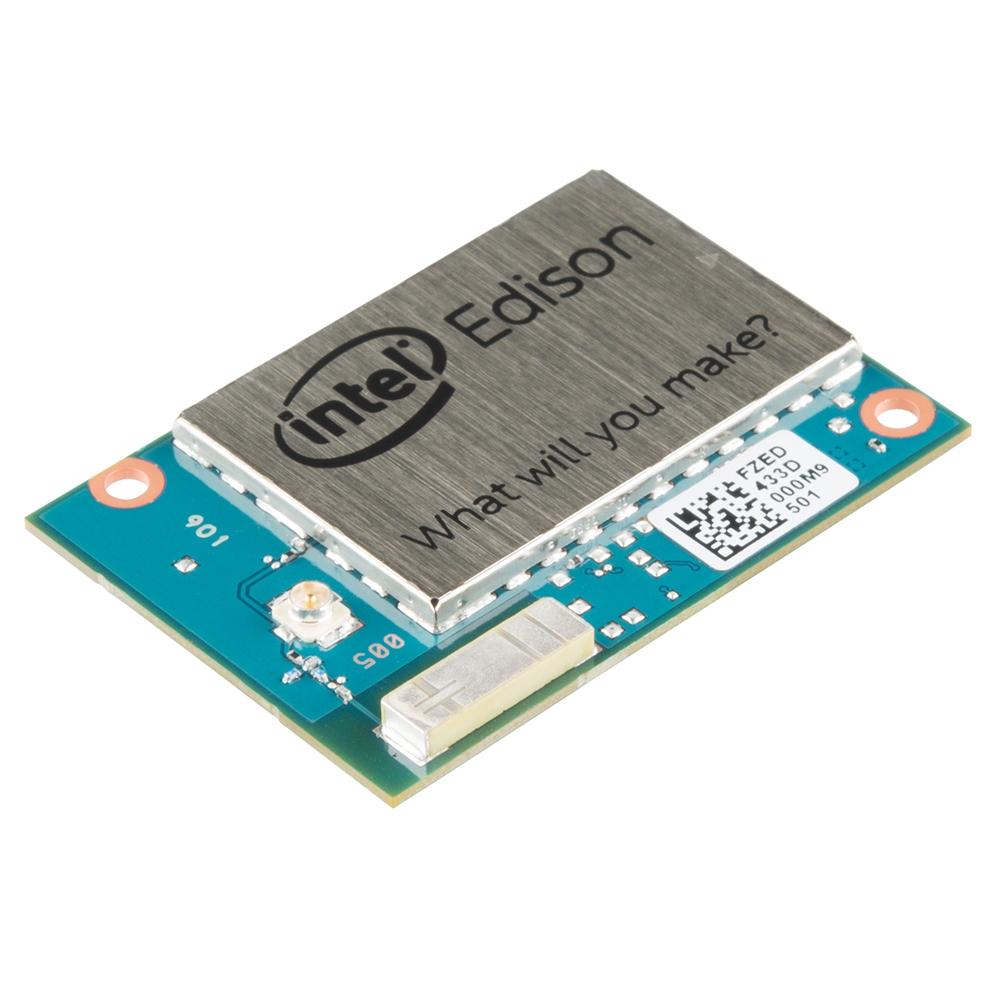

Intel® Edison

Intel® Edison technology is a hardware/software platform that, when combined with sensors and your imagination, enables you to invent new internet-enabled products and solutions.

• Processor — “Tangier” Atom SoC with 22nm Intel Atom (2x Silvermont/Merrifield-like cores @ 500MHz) and 100MHz, 32-bit Intel Quark

• Memory — 1GB LPDDR3 POP RAM (2-ch. 32-bit) @ 800MT/sec; 4GB eMMC (v4.51)

• Wireless:

  • 802.11 a/b/g/n (2.4/5GHz) using Broadcom 43340 module

  • Bluetooth 4.0 (Bluetooth LE due in Q4)

  • Onboard or ext. antenna options

• I/O — via 70-pin Hirose DF40 Series connector (1.5, 2.0, or 3.0mm stack height) with 40x GPIOs for:

  • USB 2.0 OTG

  • SD

  • 2x UART

  • 2x I2C

  • SPI

  • I2S

  • 12x GPIO (includes 4x capable of PWM)

  • 32kHz, 19.2MHz clock output

• Operating temperature — 0 to 40°C

• Power:

  • Input voltage — 3.3 to 4.5 VDC

  • Consumption:

    • Typical — (tbd, per Intel)

    • Maximum — (tbd, per Intel)

    • Standby — 13mW (no radios); 21.5mW (Bluetooth); 35mW (WiFi)

  • Output — 100ma @3.3V and 100ma @ 1.8V output

• Dimensions — 35.5 × 25.0 × 3.9mm (1.4 × 1.0 × 0.15 in.)

• Operating system — Yocto Linux 1.6 for the Atom SoC, with support for Arduino IDE, Eclipse (C, C++, Python), Intel XDK (Node.JS, HTML5); Viper RTOS SDK for the Quark MCU

    root@edison:~# uname -a
    Linux edison 3.10.17-poky-edison+ #1 SMP PREEMPT Fri Jun 19 12:06:40 CEST 2015 i686 GNU/Linux
    root@edison:~# cat /proc/cpuinfo | grep processor
    processor       : 0
    processor       : 1

Links

• IoT Intel® Edison Board
• Intel® Edison Development Platform Product Brief
• Intel® Edison Boards Board Support Package (BSP) User Guide
• Intel® Edison Compute Module Hardware Guide
• Intel® Edison Compute Module, Boards, and Kits
• IoT Intel® Edison Board User Guide
• Intel® Edison Compute Module, Boards, and Kits
• Sparkfun Intel® Edison

Breakout Boards

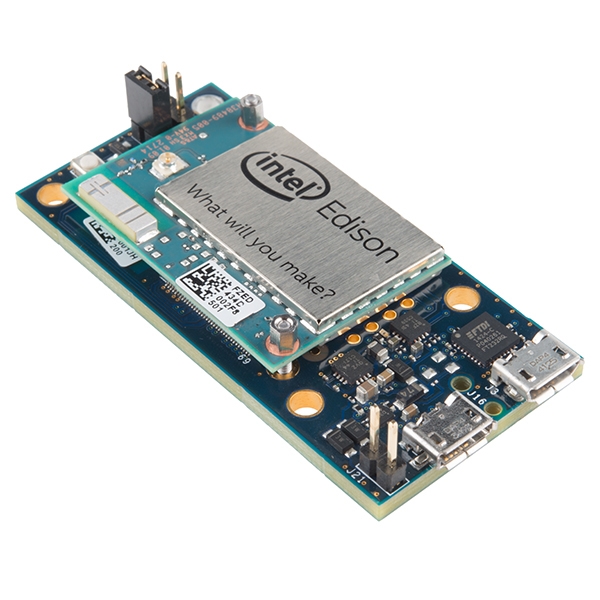

• Intel® Edison Breakout Board

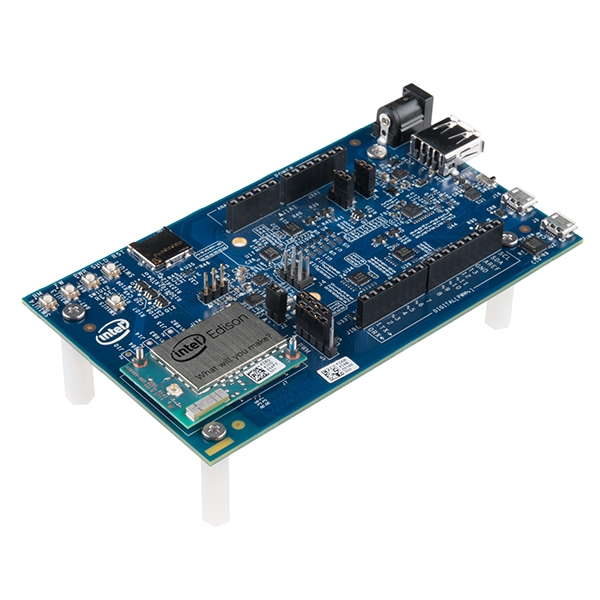

• Intel® Edison Arduino Board
• SparkFun Block for Intel® Edison - Console
• IO Expansion Shield for Intel® Edison
• Romeo for Intel® Edison Controller
• Modulowo® Explore™ E dla Intel® Edison
• Intel® Edison The Edi-Expand & IoT Counter

content/uploads/2015/12/DSC_0112_01.jpg">

Generic Microcontroller Unit (MCU) on an Intel® Edison board

Intel's added the SoC Quark to do low-level dirty work rather than eat-up bandwidth on the Atom CPU's.

• Creating applications with the MCU SDK for the Intel® Edison board
• Intel® Quark™
• Intel® Quark™ SE Microcontroller
• Intel® Quark™ Microcontroller D2000
• Intel® Quark™ Microcontroller D1000
